Möbius Conformations of Heteroannulenes

David Hall, Henry S. Rzepa* and Nikola Sanderson

Department of Chemistry, Imperial College London, SW7 2AY

Summary: Conformations of the mono, di, tri and tetra hetero [12] annulenes which have C2 or pseudo C2 symmetry are explored using ab initio theory for their potential Möbius aromatic properties, as quantified using the nucleus independent chemical shift (NICS) values at the ring centroid. This is found to be greatest for the sulphur heterocycles, and a number of known examples of tri and tetrahetero systems show C2 symmetric conformations for the crystal structures and modestly aromatic NICS values. The structures of several other annulenes show distorsions resulting from Möbius aromaticity, most promimently the tetrathiocine and tetraselenocine ring systems. We also propose forms of the elements nitrogen and sulfur which have some Möbius-aromatic character, the latter in particular being only 11 kcal mol-1 higher than the most stable conformation.

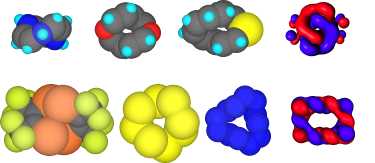

Graphical Abstract
Structures 1-10

Viewing the Supplemental Information

Molecular coordinates are present in the form of MDL Molfiles,which can be viewed within a Web browser using appropriate softwaresuch as MDL Chime (http://www.mdlchime.com/) or Chem3D viewer (http://www.cambridgesoft.com/)To view 3D models of the orbital models linked to the thumbnail diagrams in Figure 1, you will need a 3DMF viewer such as 3DMFPlugin, 3DMF Optimizer (a Macintosh application), Geo3D (for Mac) or 3DMF Viewer for Windows. Windows users must also install the QuickDraw3D libraries from Apple.

Results and Discussion

Crystal Structures

A search of the Cambridge crystallographic database8 reveals several carbocyclic annulene structures which have not hitherto been analysed in the context of Möbius aromaticity.9 Thus crystal structures of derivatives of [12]10, [16], [20] and [24]11 annulenes have been reported. The [20] annulene 4 (a=2,b=1) reveals D2 symmetry whilst the lower homologue [12] annulene 5 (R=CC-tBu) shows a very small degree of C2 twisting, which could indicate some Möbius character or could be due to crystal packing.12 The [24] annulene has D2d symmetry and the biphenyl-derived [12] annulene10 4 (a=1,b=0) has the lower (and chiral) D2 symmetry. Although structures for other [12] annulenes appear in this database, they are constrained by e.g. methano bridges and hence cannot adopt conformations containing axes of symmetry.

The hetero[12]annulene series reveals several entries for compounds of the general type 1-3. Thus structure searches revealed tribenzo derivatives of 1, X=Y=O13 and X=Y=S.13 These both exhibit a formal C2 symmetry axis. One example containing X=S, Y=N-acetyl15 is identified as having a pseudo C2 symmetry axis which passes through one S and the opposing C=C bond. These species can all be described as having conformations formed by replacing three C=C units in the recently identified Möbius form of [12] annulene5 with the corresponding heteroatom. No examples of the ring system 2 were found and only a single example of a methano-bridged derivative of the [12] heteroannulene 3, X=S has been reported,14 which by its nature has an enforced plane rather than axis of symmetry.

There are also several interesting heteroatom rich systems worthy of comment. The unusual hexa-aza[12] annulene 616 has distinct C2 like distorsions from planarity. Six examples of the 12p ring system 7a (X=S, tetrathiocin) are known17 to exhibit C2 ring symmetry, although examples of this ring with Cs symmetry are more common. The only known selenium analog 7 (X=Se, tetraselenocine) exhibits C2 ring symmetry,18 as do all the 4,5,6,7 isomers of tetrathiocin (7b, X=S) which are also not rare.19 Both AgS9-1 and AuS9-1 salts 8 are known20 in which the 10-membered ring shows C2 symmetry, and which could be formally at least be regarded as a [20] annulenes.

We conclude that a search of the Cambridge database does seem to reveal tantalising evidence of stable Möbius conformations of various annulenes, and the examples we have cited above might represent only a small proportion of the total. To understand how the geometrical preferences of these systems arise, we turned to ab initio modelling at the B3LYP/6-31G(d) theoretical level.

Figure 1. Selected molecular orbitals (RHF/6-31G*) for 8, 9 and 10, contoured at 0.01 AU.
7,X=S,R=F: HOMO-1 7,X=S,R=F: HOMO-3
7,X=Se,R=CF3: HOMO 7,X=Se,R=CF3 HOMO-1
9,a=2,b=1: HOMO 9,a=2,b=1: HOMO-9
10: HOMO-1 10: HOMO-2
10: HOMO-4 10: HOMO-7
Figure 2. Selected Geometrical values for 1, X=Y=O, S, NH.

Table 1. Calculated energies (B3LYP/6-31G(d), Hartree) and NICS(0) values (ppm) for 4-6
System Energy NICS(0)
4,a=1,b=0 -1076.47089 -3.0
4,a=1,b=1 -1228.84187 1.4
4,a=2,b=1 -1381.16171 0.5
4,a=2,b=2 -1533.47962 0.6
5 -766.71065 5.7
Table 2. Calculated energies (B3LYP/6-31G(d), Hartree) or relative energies(kcal/mol) forheteroannulenes 1-3, 7, 8, and NICS(0) values (ppm).
X, Y, R Cs (C1) C2 (pseudo C2) NICS(0)
1, X=Y=NH, R=H 13.5 (41.6) 2.5, 3.1 (-398.20690) 1.3
1, X=Y=O, R=H 6.4, 46.3 -457.78250 1.5
1, X=Y=O, R=F -3.1, 0.1, 38.3 -1053.15767 -2.3
1, X=Y=PH, R=H 4.3 (-1258.00411) 0.1
1, X=Y=S, R=H 6.7, 18.7 -1426.72236 0.0
1, X=Y=S, R=F -5.1, 12.7 -2022.06902 -3.1
1, X=O, Y=CH-, R=H -3.2 -421.26886 2.8
1, X=O, Y=CF-, R=F 1.7 -1115.91871 -1.0
1, X=O, Y=S, R=H 5.6, 29.2 -780.76745 (2.0) 0.7
1, X=O, Y=S, R=F 28.2 (-1376.13160) -2.8
1, X=S, Y=CH-, R=H 9.1,14.1 -1067.25508 5.3
1, X=S, Y=CF-, R=F 4.4, 47.2 -1761.88127 -0.2
1, X=S, Y=NH, R=H -3.2 , (40.9), 24.8 ( -1083.88695) 0.2
1, X=S, Y=O, R=H 26.4 -1103.74840 (1.6) 0.0
1, X=S, Y=O, R=F -3.8, 1.8,29.7 -1699.10275 -3.3
2, X=Y=N -11.3 5.3, -420.27282 -2.9, -1.2
2, X=Y=O -2.8 8.4, -459.99477 -0.1, -0.6
2, X=Y=S 3.2, 16.8 1.8, -1105.94349 -4.8, -1.4
2, X=Y=S, R=F -10.2 -1899.74067 -4.6
3, X=NH, R=H -8.8, 6.3 (-12.0) -442.31797 -5.4
3, X=O, R=H -1.5, 3.5 (-7.4) -462.17742 -5.6
3, X=S, R=H 1.2,8.2,(-4.0) -785.15962 -6.3
3, X=S, R=F -1.1 (-3.1) -1777.42173 -4.8
6 - (-1021.50351) -5.9
7a, X=S, R=H -1747.52621 -1747.53529 -4.7
7b, X=S, R=H - -1747.55077 -3.3
7a, X=S, R=F -2144.43257 -2144.42289 -3.9
7a, X=Se, R=H -9752.33901 -9752.34808 -6.2
7b, X=Se, R=H (-9752.37322) -9752.37739 -1.6
7a, X=Se, R=F -10149.251472 -10149.24279 -4.9
7a, X=Se, R=CF3 - -11100.4724 -7.6
8,X=Ag - -8743.56809b -4.2
9,a=1,b=0 - -1745.01525 -2.8
9,a=2,b=1 - -2049.58532 -1.1
10 -11.0 -3185.53301 -3.2
11 - (-656.58174) -4.4

References

  1. E. Heilbronner, Tetrahedron Lett., 1964, 29, 1923.
  2. M. Mauksch, V. Gogonea, H. Jiao and P. von R. Schleyer Angew. Chemie Int. Edition, 1998, 37, 2395.
  3. S. Martin-Santamaria and H S. Rzepa, ChemComm., 2000, 1089; idem, J. Chem. Soc., Perkin Transactions 2, 2000, 2372-2377
  4. P. von R. Schleyer, C. Maerker, A. Dransfeld, H. Jiao, and N. J. R. van Eikema Hommes, J. Am. Chem. Soc., 1996, 118, 6317; H. Jiao and P. von R. Schleyer, J. Phys. Org. Chem., 1998, 11, 655.
  5. C. Castro, C. M. Isborn, W. L. Karney, M. Mauksch and P. von R. Schleyer, Organic Letters, 2002, 4, 3431-3434.
  6. W. L. Karney, C. J. Kastrup, S. P. Oldfield and H. S. Rzepa, J. Chem. Soc., Perkin Trans 2, 2002, 388-392.
  7. Gaussian 98 (Revision A.11), M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, V. G. Zakrzewski, J. A. Montgomery, Jr., R. E. Stratmann, J. C. Burant, S. Dapprich, J. M. Millam, A. D. Daniels, K. N. Kudin, M. C. Strain, O. Farkas, J. Tomasi, V. Barone, M. Cossi, R. Cammi, B. Mennucci, C. Pomelli, C. Adamo, S. Clifford, J. Ochterski, G. A. Petersson, P. Y. Ayala, Q. Cui, K. Morokuma, D. K. Malick, A. D. Rabuck, K. Raghavachari, J. B. Foresman, J. Cioslowski, J. V. Ortiz, A. G. Baboul, B. B. Stefanov, G. Liu, A. Liashenko, P. Piskorz, I. Komaromi, R. Gomperts, R. L. Martin, D. J. Fox, T. Keith, M. A. Al-Laham, C. Y. Peng, A. Nanayakkara, C. Gonzalez, M. Challacombe, P. M. W. Gill, B. G. Johnson, W. Chen, M. W. Wong, J. L. Andres, M. Head-Gordon, E. S. Replogle and J. A. Pople, Gaussian, Inc., Pittsburgh PA, 1998.
  8. F. H. Allen and O. Kennard, Chemical Design Automation News, 1993, 8, pp 1 & 31-37.
  9. A. J. Matzger and K. P. C. Vollhardt, Tetrahedron Letters, 1998, 39, 6791-6794;
  10. TDHBZD: H. Irngartinger Chem. Ber., 1973, 106, 761.
  11. [16] D. Solooki, J. D. Bradshaw, C. A. Tessier, W. J. Youngs, R. F. See, M. Churchill and J. D. Ferrara, J. Organomet. Chem., 1994, 470, 231; RICVEE: [20] R. Boese, A. J. Matzger and K. P. C. Vollhardt, J. Am. Chem. Soc.,, 1997, 117, 2052; HEGGOP: [24] L. Guo, J. D. Bradshaw, C. A. Tessier and W. J. Youngs, Chem.Commun., 1994, 243
  12. JAJTIX: J. D. Tovar, N. Jux, T. Jarrosson, S. I. Khan and Y. Rubin J. Org. Chem., 1997, 62, 3432
  13. HMTHBZ: K. von Deuten and G. Klar Z. Naturforsch.,Teil B, 1981, 36, 1526.
  14. K. von Deuten, J. Kopf and G. Klar Cryst. Struct. Commun., 1979, 8, 569.
  15. NIJKIA: K. Kyongtae and M. Nyoung, J. Heterocyclic Chem., 1997, 34, 1-12.
  16. HACKBEB: H. Hilpert, L. Hoesch and A. S. Dreiding, Helvetica Chimica Acta, 1985, 68 325-33; cited in the Cambridge database as A. S. Dreiding, J. H. Bieri, R. Prewo, A. Linden, H. Hilpert and L. Hoesch, Private Communication, 1993.
  17. BIBNIJ: T. Chivers, M. Parvez, I. Vargas-Baca and G. Schatte, Can. J. Chem., 1998, 76, 1093; HONKUQ T. Shimizu, H. Murakami, Y. Kobayashi, K.Iwata and N.Kamigata, J. Org. Chem., 1998, 63, 8192; HONLAX: T. Shimizu, H. Murakami, Y. Kobayashi, K.Iwata and N.Kamigata, J.Org.Chem., 1998, 63, 8192; POSHOU: A. I. Kotov, S. V. Konovalikhin, R. V. Pisarev, G. V. Shilov, O. A. Dyachenko and E. B. Yagubskii, Mendeleev Commun., 1994, 180; TUBCIC: T. Shimizu, K. Iwata and N. Kamigata, Angew.Chem.,Int.Ed.Engl.,1996, 35, 2357; ZINPOB: cited in the Cambridge database as E. Fanghanel, R. Herrmann, J. Bierwisch, H. Hartung, U. Baumeister, G. Maier and H. P. Reisenauer, Private Communication, 1996.
  18. HETTAB: K. B. Borisenko, M. Broschag, I. Hargittai, T. M. Klapotke, D.Schroder, A.Schulz, H. Schwarz, I. C. Tornieporth-Oetting and P. S. White, J. Chem. Soc., Dalton Trans., 1994, 2705.
  19. HOLPED: M. C. Aragoni, M. Arca, F. Demartin, F. A. Devillanova, A.Garau, F. Isaia, F. Lelj, V. Lippolis and G.Verani J. Am. Chem. Soc., 1999, 121, 7098; JUSSAR: F. Bigoli, P. Deplano, M. L. Mercuri, M. A. Pellinghelli, E .F. Trogu and A.Vacca, Semin. Virol., 1991, 62, 53; SOJTIU: F.Bigoli, M. A. Pellinghelli, P.Deplano and E.F.Trogu, Inorg. Chim. Acta, 1991, 182, 33; VEBCEK D. Atzei, P. Deplano, E. F. Trigu, F. Bigoli, M. A. Pellinghelli, A.Sabatini and A.Vacca, Can. J. Chem., 1989, 67, 1416; VIDKOI: F. Bigoli, M. A. Pellinghelli ,P.Deplano, E.F.Trogu, Inorg. Chim. Acta, 1990, 170, 245; ZARDOL: F. Bigoli, P. Deplano, M. L. Mercuri, M. A. Pellinghelli, A. Sabatini, E. F. Trogu and A.Vacca, Can. J. Chem., 1995, 73, 380.
  20. COVCEV20: A. Muller, M. Romer, H. Bogge, E. K. Rickemeyer and M. Zimmermann Z. Anorg. Allg. Chem., 1986, 534, 69; CILPUI: G. Marbach and J. Strahle Angew. Chem., Int. Ed. Engl., 1984, 23, 246.
  21. C. J. Kastrup, S. Oldfield and H. S. Rzepa, ChemComm., 2002, 6452-643.
  22. A. A. Fokin, H. Jiao and P. von Schleyer, J. Am. Chem. Soc. 1998, 120, 9364-9365; A. D. Darwish, I. V. Kuvytchko, X.-W. Wei, O. V. Boltalina, I. V. Gol'dt, J. M. Street and R. Taylor, J. Chem. Soc., Perkin Transactions 2, 2002, 1118-1121.
  23. D. Hall and H. S. Rzepa, Org. Biomol. Chem., 2002, in press; H. S. Rzepa and K. Taylor, J. Chem. Soc., Perkin Trans 2, 2002, 1499-1501.
